Noctua NH-D15 G2 HBC CPU Cooler

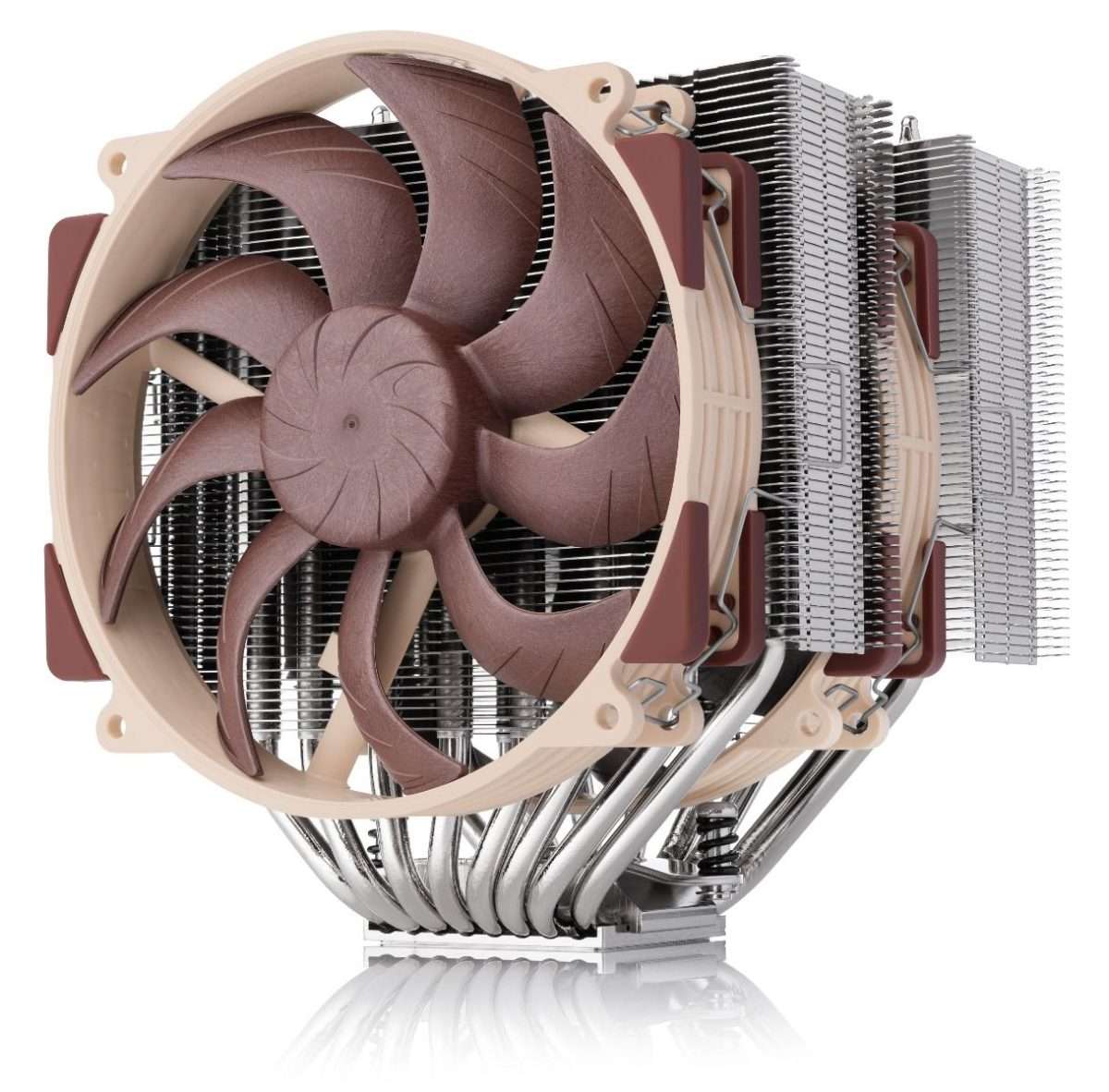

- The Noctua NH-D15 G2 HBC CPU cooler is specifically optimized for LGA1700 processors, ensuring excellent contact quality even with concave CPUs. It features dual NF-A14x25r G2 140mm PWM fans and supports a wide range of sockets, including AMD AM5, AM4, and Intel LGA1851, LGA1700, LGA1200, and LGA115x. Equipped with SSO2 bearings and a SecuFirm2+TM multi-socket mounting system, it provides reliable, high-performance cooling for demanding applications.
| Cooler Specification: | |
| Socket compatibility | AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
| Height (without fan) | 168 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 127 mm |
| Weight (without fan) | 1180 g |
| Height (with fan) | 168 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 152 mm |
| Weight (with fan) | 1525 g |
| Material | Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Scope of delivery | 2x NF-A14x25r G2 PWM premium fan 2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H2 high-grade thermal compound NA-TPG1 thermal paste guard for AM5 NA-CW1 cleaning wipe SecuFirm2+TM multi-socket mounting system NM-SD1 Torx® T20 screwdriver Noctua metal case-badge |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1250 RPM |
| Max. airflow | 155.6 m³/h |
| Max. airflow with L.N.A. | 127.1 m³/h |
| Max. acoustical noise | 4.8 dB(A) |
| Max. acoustical noise with L.N.A. | 19.7 dB(A) |
| Blade geometry | Progressive-Bend impeller |
| Acoustical noise | 24.8 dB(A) |
| Input power (max.) | 2.28 W |
| Voltage range | 12 V |
| MTTF | 150.000 h |
- The NH-D15 G2 HBC high (Base Convexity) variant is specifically optimised for LGA1700 processors that are used with full ILM pressure or have become permanently deformed in long-term use, providing excellent contact quality despite the CPU’s concave shape..
