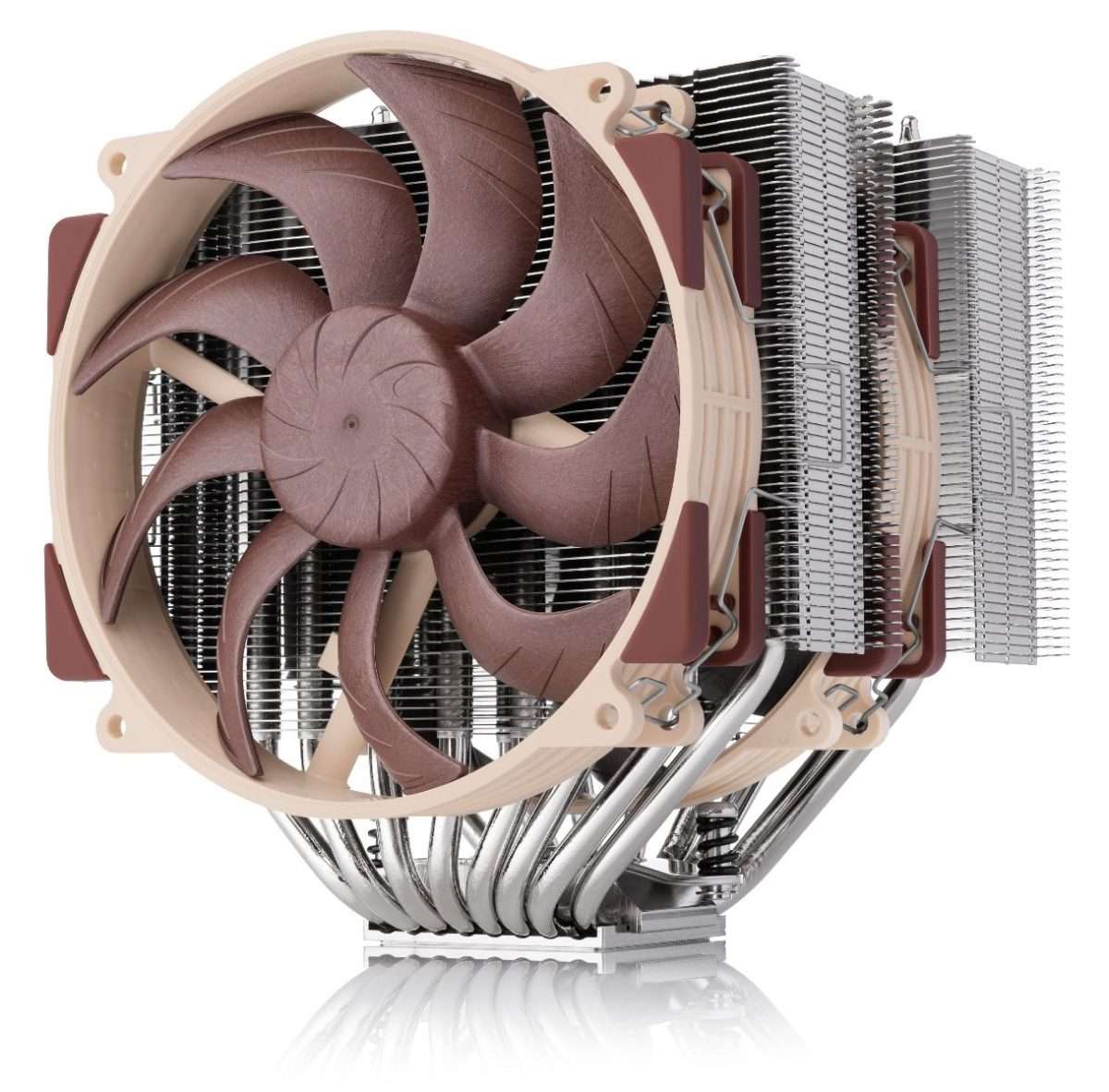

Noctua NH-D15 G2 LBC CPU Cooler
- The Noctua NH-D15 G2 LBC CPU cooler is specifically optimized for AM5 processors, ensuring excellent contact quality even with concave CPUs. It features dual NF-A14x25r G2 140mm PWM fans and supports a wide range of sockets, including AMD AM5, AM4, and Intel LGA1851, LGA1700, LGA1200, and LGA115x. Equipped with SSO2 bearings and a SecuFirm2+TM multi-socket mounting system, it provides reliable, high-performance cooling for demanding applications.
| Cooler Specification: | |
| Socket compatibility | AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
| Height (without fan) | 168 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 127 mm |
| Weight (without fan) | 1180 g |
| Height (with fan) | 168 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 152 mm |
| Weight (with fan) | 1525 g |
| Material | Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
| Scope of delivery | 2x NF-A14x25r G2 PWM premium fan
2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H2 high-grade thermal compound NA-TPG1 thermal paste guard for AM5 NA-CW1 cleaning wipe SecuFirm2+TM multi-socket mounting system NM-SD1 Torx® T20 screwdriver Noctua metal case-badge |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1250 RPM |
| Max. airflow | 155.6 m³/h |
| Max. airflow with L.N.A. | 127.1 m³/h |
| Max. acoustical noise | 4.8 dB(A) |
| Max. acoustical noise with L.N.A. | 19.7 dB(A) |
| Blade geometry | Progressive-Bend impeller |
| Acoustical noise | 24.8 dB(A) |
| Input power (max.) | 2.28 W |
| Voltage range | 12 V |
| MTTF | 150.000 h |
- The NH-D15 G2 LBC The LBC (Low Base Convexity) variant is specifically optimised for relatively flat CPUs. As such, it offers excellent contact quality on AMD AM5 even without the offset mounting as well as on other comparably flat CPUs (e.g. AM4, LGA2066, LGA2011, lapped or custom flat heatspreaders).
