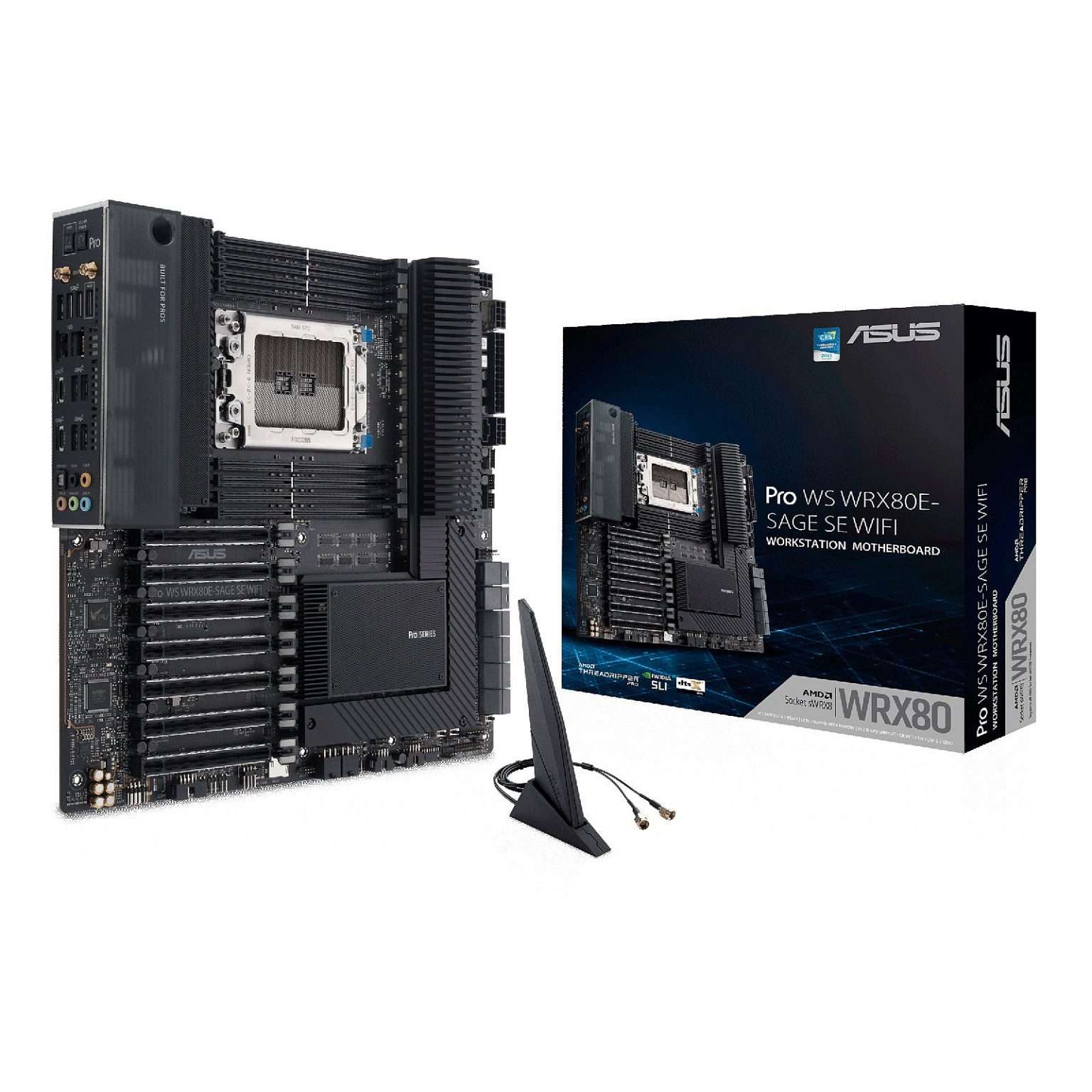

ASUS Pro WS WRX80E-SAGE SE WIFI Motherboard extended ATX Socket sWRX8 AMD WRX80 Chipset

ASUS Pro WS WRX80E-SAGE SE WIFI motherboard supports AMD Ryzen Threadripper PROs on AMD sWRX8 socket, 8-channel DDR4 RAM, U.2/M.2 and SATA 6Gbps drives and PCI-Express 4.0

  • E-ATX Form Factor
  • AMD WRX80 Chipset
  • sWRX8 Socket
  • 8 x Octa-Channel ECC DDR4-3200
  • 8 x SATA III | 3 x M.2 | 2 x U.2
  • 7 x PCIe 4.0 x16
  • Realtek ALC4080 7.1-Channel HD Audio
  • 2 x 10G Ethernet | Wi-Fi 6 (802.11ax)
  • NVIDIA SLI Support
  • Supports Windows 10 (64-Bit)

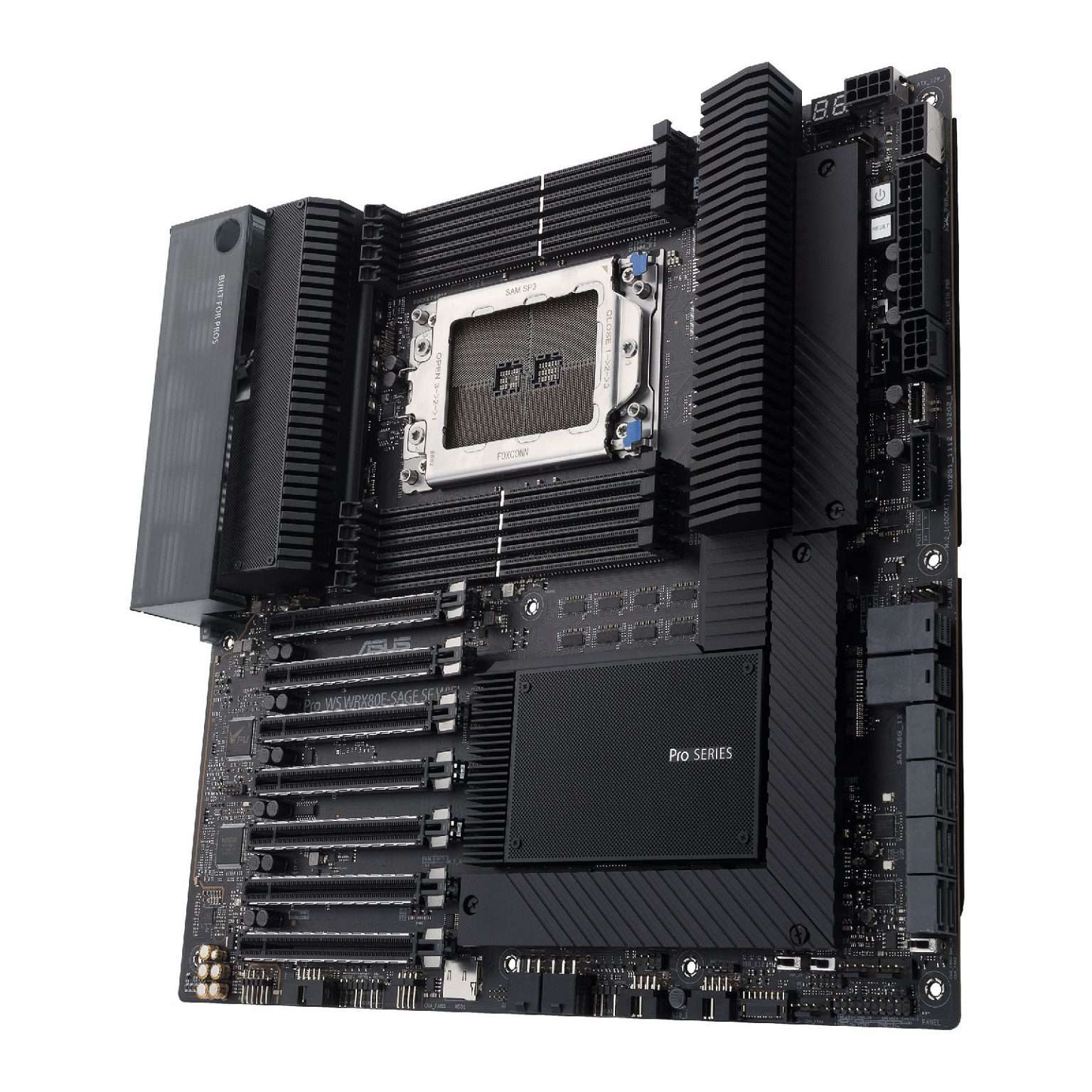

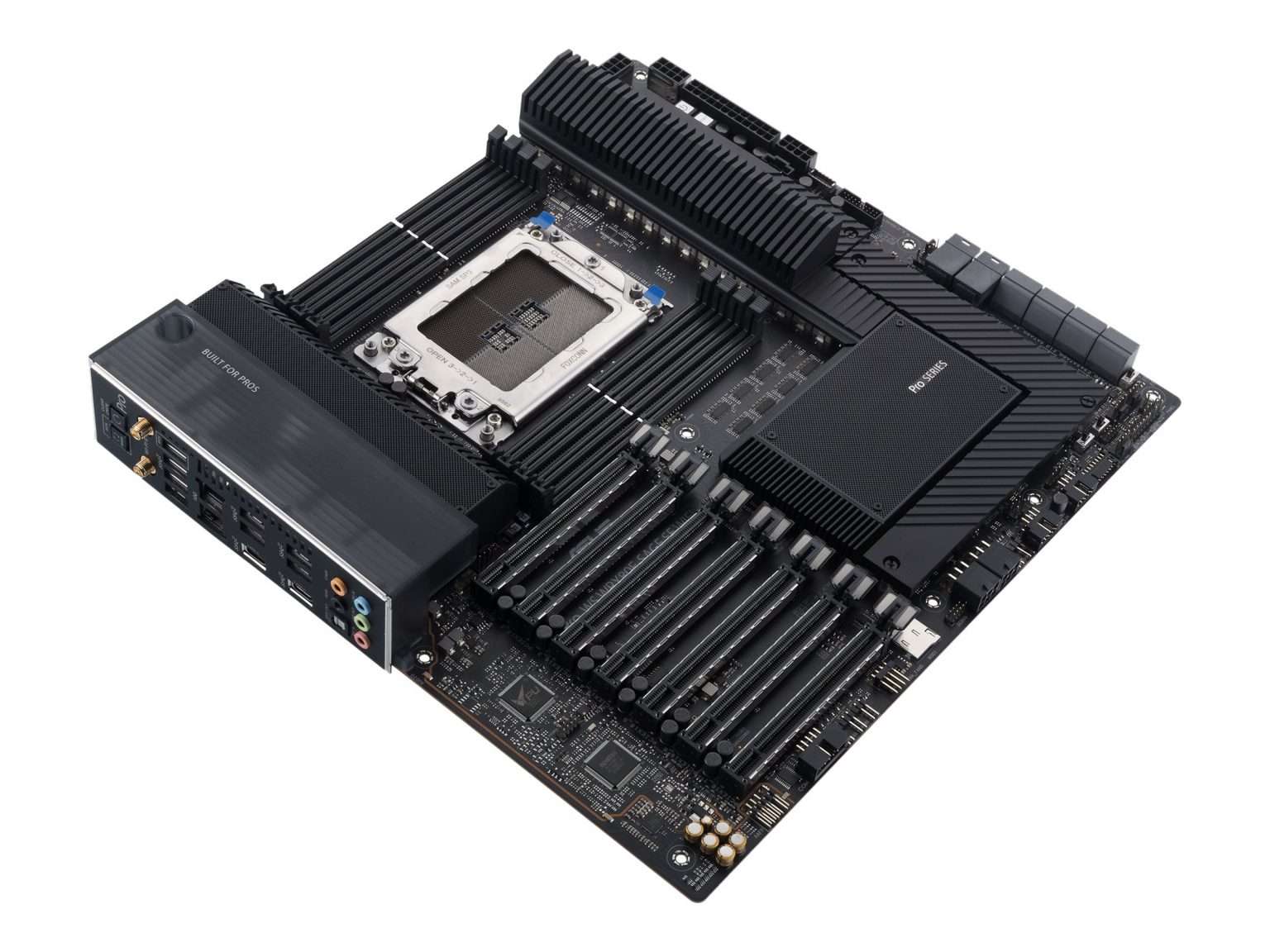

Professional Workstation Motherboard
The ASUS Pro WS WRX80E-SAGE SE WIFI Workstation Motherboard is designed for users looking for high performance. It supports the powerful AMD Ryzen Threadripper PRO multi-core processors on AMD sWRX8 socket, 8-channel DDR4 RAM, U.2/M.2 and SATA 6Gbps drives and PCI-Express 4.0 graphics cards for outstanding performance. These incredible features will allow you to assemble a super-powered, future-proof workstation for Virtual Reality, ultra-intensive multitasking, digital editing or music and video editing.
ASUS PRO WS WRX80E-SAGE SE WIFI :
AMD sWRX8 socket for AMD Ryzen Threadripper PROprocessor
8 DDR4 3200 MHz 8-channel memory slots
8 SATA 6Gb/s + 3x M.2 PCIe 4.0 x4 / SATA Gbit/s + 2x U.2 (PCI-E 4.0 x4 NVMe)
7 x PCI-Express 4.0 16x ports
USB 3.1 and USB 3.2 ports
Wireless connectivity: Wi-Fi 6 AX / Bluetooth 5.1
10 GbE network controller + iPMI and iKVM
MORE POWER WITH AMD
Professional content creators can now make the most of the fastest and most versatile workstation processor ever created. Its unmatched core count for multi-threaded workloads rivals competing dual-socket solutions and high-frequency single-threaded performance for low-threaded tasks. This unique full-spectrum computing capability enables faster rendering times, more creative iterations, faster simulation resolution, faster assembly reconstruction, and smooth interactivity with 3D assets





GENERAL INFORMATION

Product name

ASUS Pro WS WRX80E-SAGE SE WIFI

Brand

ASUS

Model

90MB1590-M0EAY0

PROCESSOR

Processor support

AMD sWRX8

Number of CPUs supported

1

CHIPSET

Chipset

AMD WRX80

MEMORY

Memory format

8 X DIMM 288-pin (DDR4)

Memory Frequency(ies)

DDR4 2133 MHz
DDR4 2400 MHz
DDR4 2666 MHz
DDR4 2800 MHz
DDR4 2933 MHz
DDR4 3000 MHz
DDR4 3200 MHz

Memory type

DDR4

Memory technology

8-Channel

Maximum RAM capacity per slot

256 GB

Maximum RAM capacity

2048 GB

GRAPHIC

Integrated graphics controller

No

Compatible graphics core integrated in the CPU

No

EXPANSION SLOTS

Graphic connector(s)

7 X PCI Express 4.0 x16

Number and Type of slots

None

Multi-GPU type

3-way SLI
4-way SLI
NVLink
SLI

AUDIO

Audio Chipset

Realtek ALC4080

Number of audio channels

8

NETWORK

Number of ports/Ethernet controler

Intel X550-AT2

Network standard(s)

Bluetooth 5.1
10 Gbps Gigabit Ethernet (10 GbE)
Wi-Fi 6 AX

Wi-Fi

Yes

STORAGE

RAID supported

Yes

Hard drives connectors

2 X U.2 - PCI-E 3.0 x4 NVMe
8 X Serial ATA 6Gb/s (SATA Revision 3)
3 X M.2 - PCI-E 4.0 x4 + SATA 6 Gb/s

CONNECTIVITY

Number of connectors for fans

10

Rear panel connectors

1 X USB 3.2 Type C
1 X USB 3.1 Type C
8 X USB 3.1
2 X RJ45 Female
BIOS Flash Update
1 X Digital audio S/PDIF Optical
5 X 3.5mm Jack Female Stereo
2 X SMA Female

Additional connectors

1 X TPM
2 X +12V (Power supply P8)
1 X ATX 24 Pin
2 X PCI Express 6 Pin
1 X PCI Express 8 Pin
4 X Internal USB 2.0
2 X Internal USB 3.0
1 X Internal USB 3.2

USB ports

USB 2.0
USB 3.0
USB 3.1
USB 3.2

PHYSICAL CHARACTERISTICS

Motherboard format

SSI EEB

Length

301 mm

Width

330 mm
