DeepCool 850W 80 PLUS Gold Certified Fully Modular Power Supply
₨ 21,800.00
DeepCool 850W 80 PLUS Gold Rated Fully Modular Power Supply, Thermally Intelligent With PWM Cooling Fan, Highly Efficient on all Rails including 5VSB, Upto 70.5A on +12V Rails to ensure your System’s stability, Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Guaranteed Safe Checkout
Product Description
80 PLUS® GOLD certified – Up to 91.2% efficiency
100% High-quality Japanese capacitors
Full bridge PFC + LLC Resonant converter

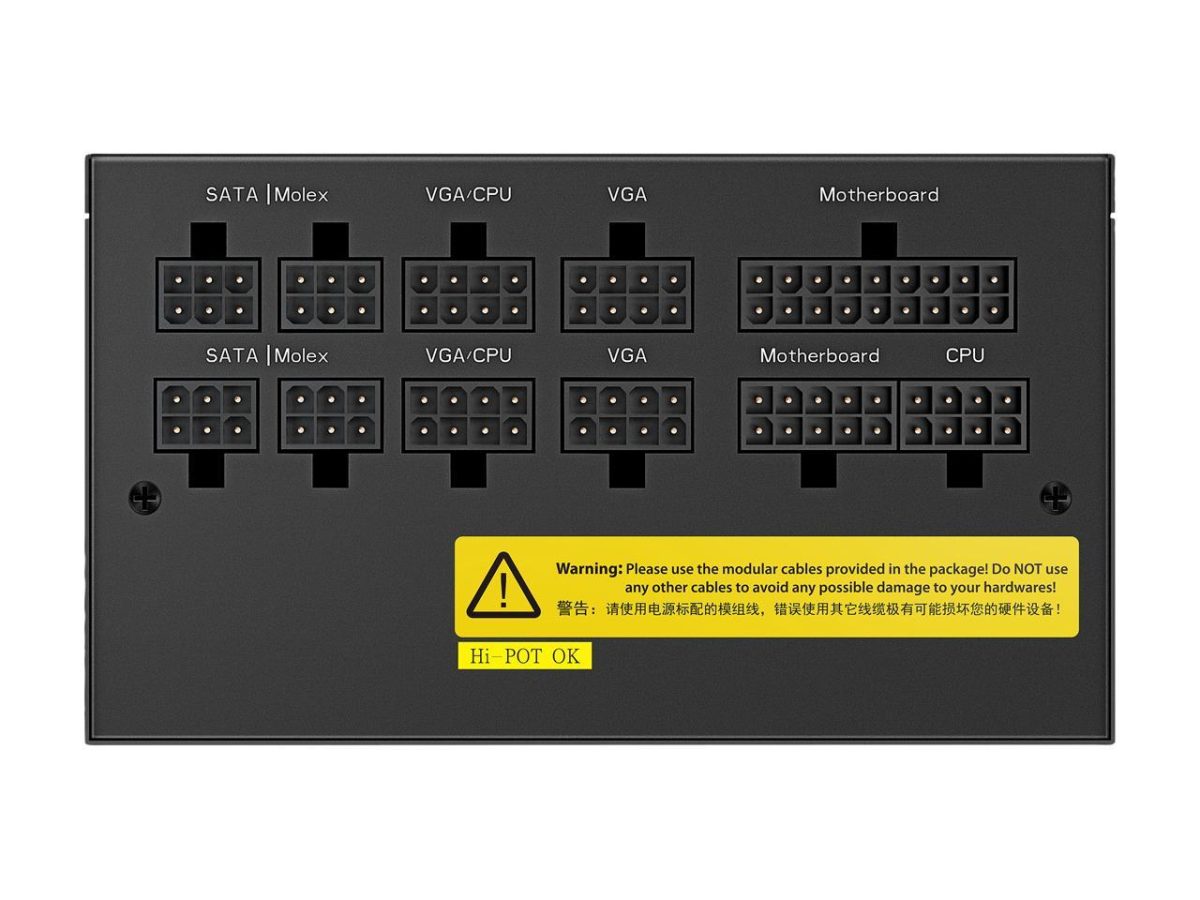

Fully modular with flat cable design
CircuitShield™ — OVP / UVP / SCP / OPP / OTP
Technical Specification
| Model | DQ850-M-V2L |
| Type | ATX 12V V2.4 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 850W |
| Input Voltage | 100-240V |
| Input Current | 12.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms(80%Â Loading) |
| Efficiency | >90% Under Typical Load(50%Â Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
| MTBF | 100,000 Hours |
| EAN | 6933412798934 |
| P/N | DP-GD-DQ850-M-V2L |
